NewScope-5 is an LCD retrofit kit to replace the HP 1345A Digital Display used in the following HP equipment:

  • 3577A Network Analyzer
  • 3577B Network Analyzer
  • 3562A Dynamic Signal Analyzer
  • 3563A Control Systems Analyzer
  • 8756A Scalar Network Analyzer
  • 4145A Semiconductor Parameter Analyzer
  • 4145B Semiconductor Parameter Analyzer


  • Bitmap font gives better clarity over the original vector font when rendered on an LCD panel
  • Display items are differentiated by colors, similar to later models in the same test equipment family
  • Four display schemes selectable by the Focus adjustment
  • The 1345A vector memory option (option 704) can be enabled by a jumper
  • The LCD backlight is powered from the regulated +15V that was used for the 1345A display in the system

For more information, click to open the Operating Manual with installation instructions:

NewScope-5 Operating Manual


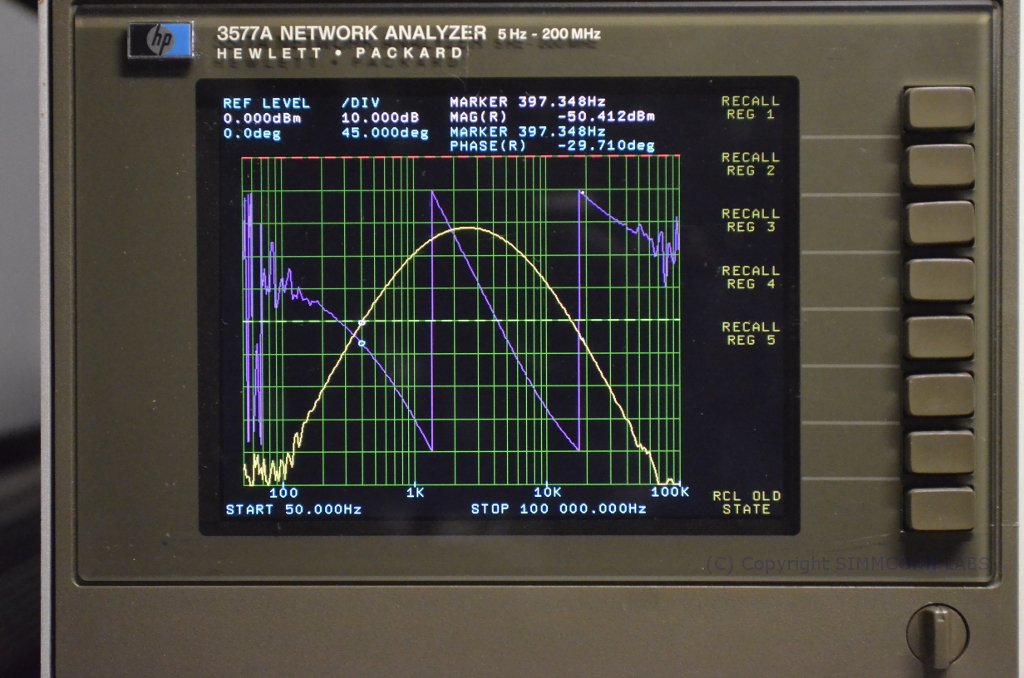

NewScope-5 Color LCD Display on HP 3577A Network Analyzer (click to zoom in)

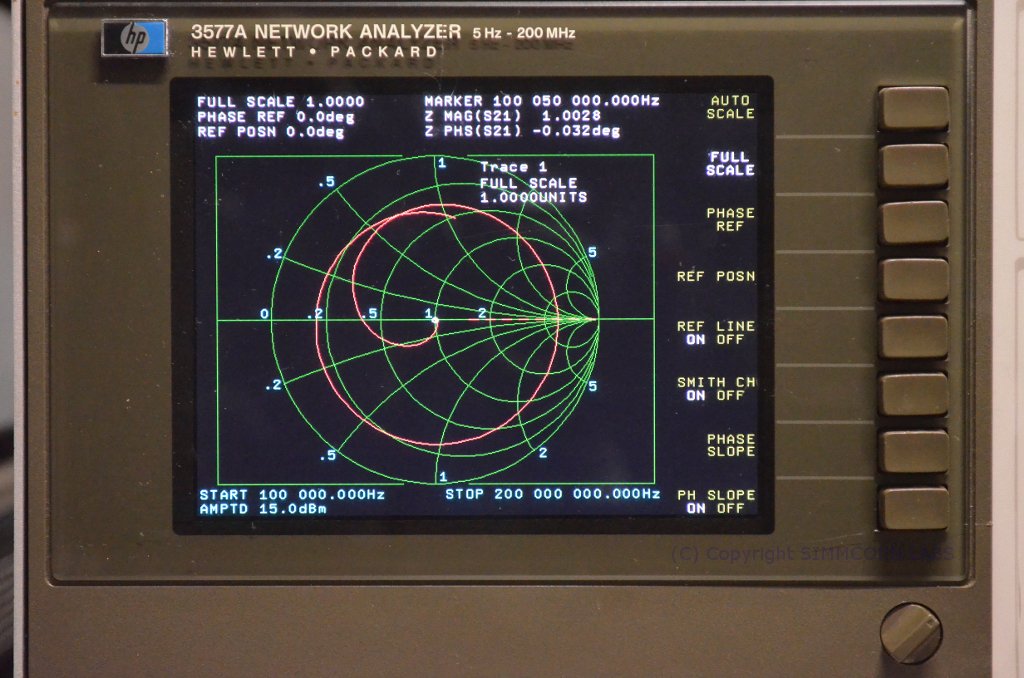

NewScope-5 Color LCD display showing Smith Chart (click to zoom in)


Buy from our Web Store

Note: NewScope-5 has built-in vector memory option. However, it is not compatible with 8980A and 8981A/B Vector Signal Analyzers
