The NewScope-T0/T0e Color LCD replacement Kit is designed to replace the monochrome CRT displays used in Tektronix® TDS 500 and TDS 600 series digital oscilloscopes. The Kit supports 6.5” TFT color LCD at VGA (640 x 480) resolution. The supported oscilloscope models include:

  • TDS 520A 540A 620A 640A
  • TDS 520B 540B 620B 680B
  • TDS 520C 540C 580C 680C
  • TDS 520D 540D 580D

NewScope-T1 Color LCD replacement Kit The is designed to replace the Color CRT displays used in Tektronix® TDS 500, 600 and 700 series digital oscilloscopes and the TLS216. The Kit supports 6.5” TFT color LCD at VGA (640 x 480) resolution. The supported oscilloscope models include:

  • TDS 644A 644B 654C 524A
  • TDS 684A 684B 684C 694C
  • TDS 724A 724C 724D 714L
  • TDS 744A 754C 754D 544A
  • TDS 784A 784C 784D 794D


  • Channel indicators are mapped to different colors
  • Supports individual intensity adjustment of the display elements
  • Supports InstaVu and DPO acquisition waveform display
  • Symmetric mounting bracket to optimize for different viewing directions
  • Easy installation, no soldering required
  • Does not use the rear VGA output port, free from video background noise in A-to-D conversion solutions
  • Includes a high-brightness, 6.5" Industrial LCD panel with long-life LED back light (the low-cost T0e kit uses LCD panel with CCFL back light)

For more information, click to open the Operating Manuals with installation instructions:

NewScope-T0/T0e Operating Manual
NewScope-T1 Operating Manual

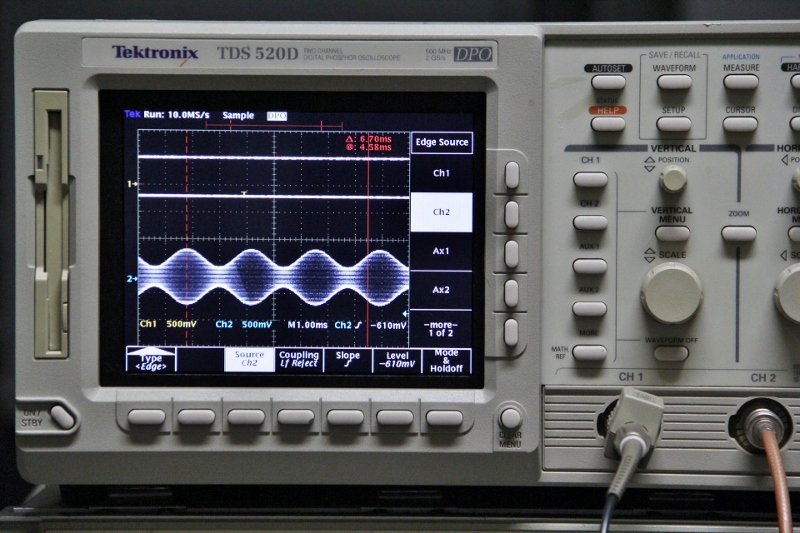

NewScope-T0 installed on TDS 520D with DPO enabled (click to zoom in)

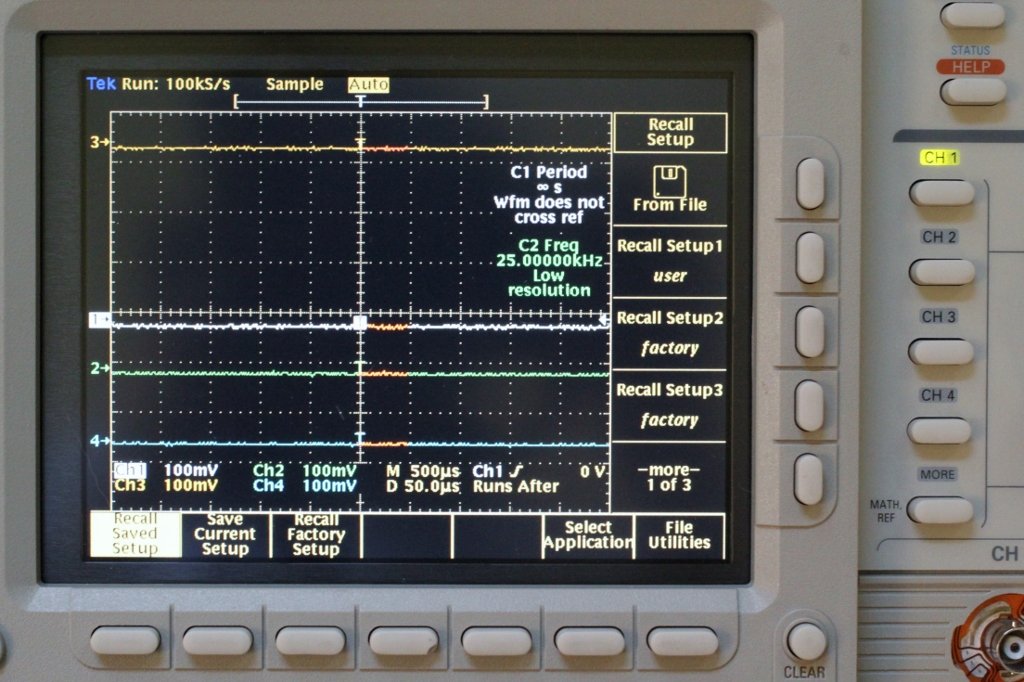

NewScope-T1 installed on a color TDS oscilloscope (click to zoom in)


Buy from our Web Store

Note: Due to the limitation of the monochrome TDS oscilloscopes, waveform display remains the same color for all channels. The kits are not compatible with TDS 520/620/540/640 (without A/B/C/D suffix) models.
