NewScope-9 is an LCD retrofit kit to replace the HP 1349A or 1349D Digital Display used on the following HP equipment:

  • 8753A Network Analyzer
  • 8753B Network Analyzer
  • 8757A Scalar Network Analyzer
  • 8702A Lightwave Component Analyzer
  • 8720A Network Analyzer


  • Supports SVGA resolution
  • Bitmap font gives better clarity over the original vector font when rendered on an LCD panel
  • Display items are differentiated by colors, similar to later models in the same test equipment family
  • Parallax correction scales the soft menu text area to alight with the soft menu keys without affecting the rest of the picture
  • Four display schemes selectable by the Focus adjustment (via pot or menu setting)
  • The vector memory available on the 1349D can be enabled by a jumper
  • The LCD back light is powered from the regulated +15V that was used for the 1349A/D display in the system

For more information, click to open the Operating Manual with installation instructions:

NewScope-9 Operating Manual

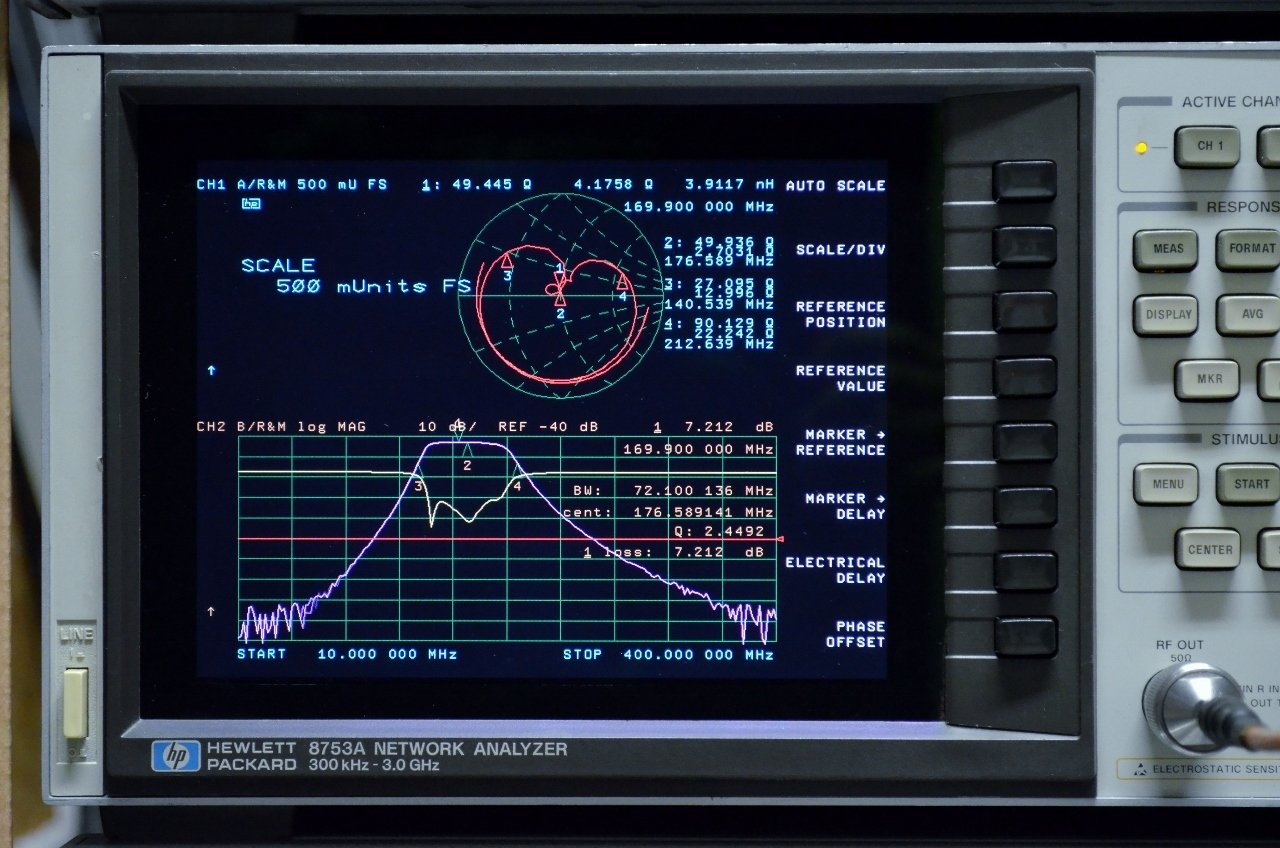

NewScope-9 Color LCD Display on HP 8753A Network Analyzer (click to zoom in)

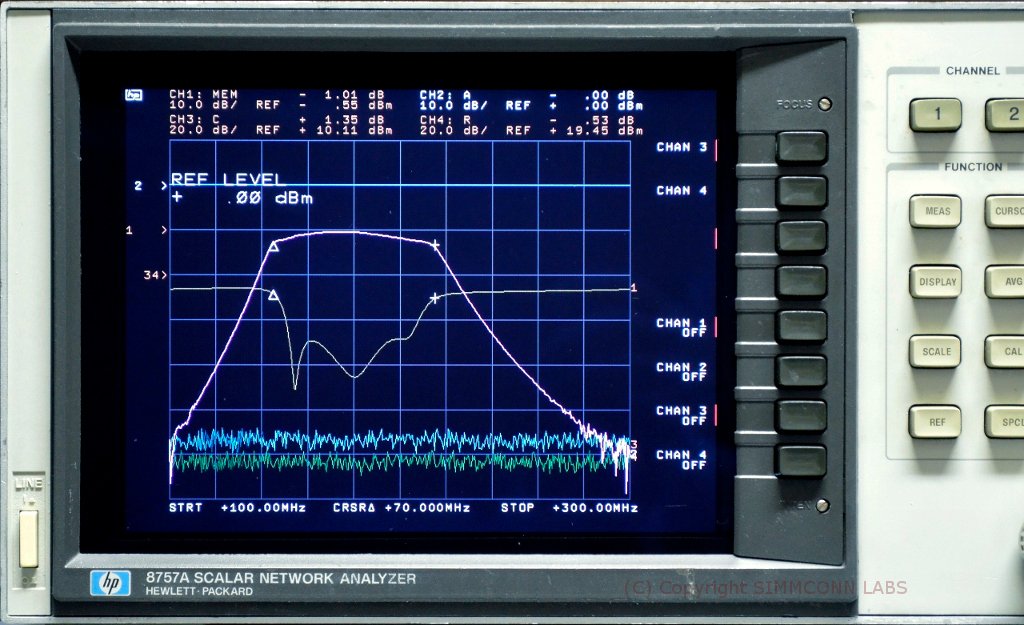

NewScope-9 Color LCD Display on HP 8757A Scalar Network Analyzer
